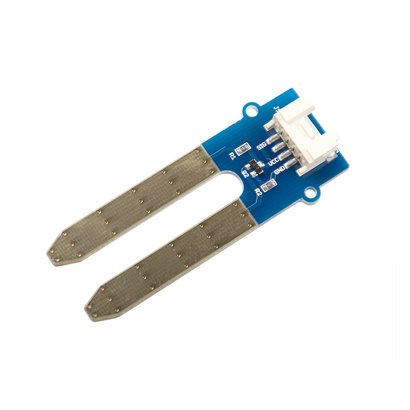

Grove - Soil Moisture Sensor

Seeed Grove - Soil Moisture Sensor

Article number: SEE-101020008

€4,76

Incl. VAT

Features

Soil moisture sensor based on soil resistivity measurement
Consists of two probes that allow the current to pass through the soil
Easy to use and cost-effective
Grove compatible interface( u-blox version)

Description

Grove - Soil Moisture Sensor can measure soil moisture for plants. The soil moisture sensor consists of two probes that allow the current to pass through the soil and then obtain resistance values to measure soil moisture content. It can be used to decide if the plants in a garden need watering. You can also use soil moisture sensors in gardens to automate watering plants. It can be used very easily by just inserting the sensor into the soil and reading the output using ADC.

NOTE

This sensor is not hardened against contamination or exposure of the control circuitry to water and may be prone to electrolytic corrosion across the probes, please use it for PROTOTYPING ONLY. We also offer Grove - Capacitive Moisture Sensor with corrosion resistance.

Applications

Botanical Gardening
Moisture Sensoring
Consistency Measurement

Technical details

Dimensions	60mm x20mm x6.35mm
Weight	G.W 10g
Battery	Exclude
Operating voltage	3.3~5V
Operating current	35mA
Sensor Output Value in dry soil	0~ 300
Sensor Output Value in humid soil	300~700
Sensor Output Value in water	700 ~ 950
PCB size	2.0cm X 6.0cm

Part List

Grove - Moisture Sensor	1
Grove Cable	1
